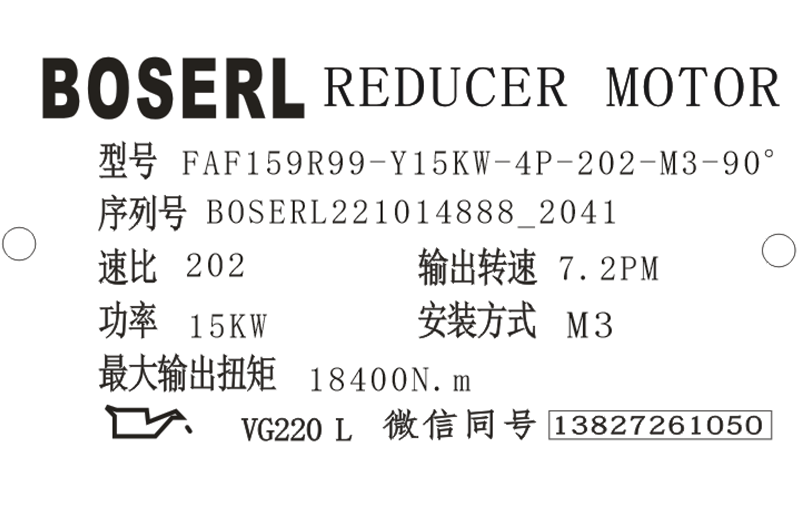

FAF159R99減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF159R99減速機選型樣本。

FAF159R99-Y15KW-4P-202-M3-90°

FAF/R：系列代號

159/99：減速機規格代號

Y：電機

15KW：電機功率

4P：電機級數

202：減速機傳動比

M3：減速機安裝位置

90°：接線盒位置

FAF159R99減速機電機接線操作圖：

電氣操作必須由合格的專業人員，在低壓設備斷電停機且不會意外重新啟動的前提條件下執行。對輔助電路（比如:外部風機）也如此。否則可能會有觸電或人員受傷的危險。齒輪減速電機

超出EN 60034-1標準（VDE0530標準第1部分）規定的公差（電壓+5%、頻率+2%）,會導致設備升溫并影響設備的電磁兼容性。各型號具體的接線圖以各電機銘牌上的為準。

將3根電源線的任意2根接線交換，將可改變?nèi)嚯姍C的旋轉方向。平行軸斜齒輪減速機

以下為各類型電機各自的電氣接線圖：

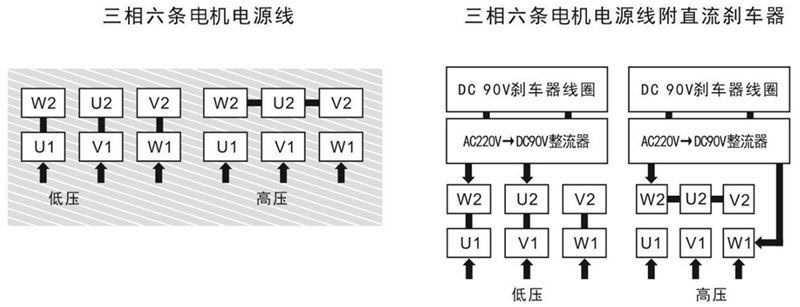

一、FAF159R99減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（無變頻器）

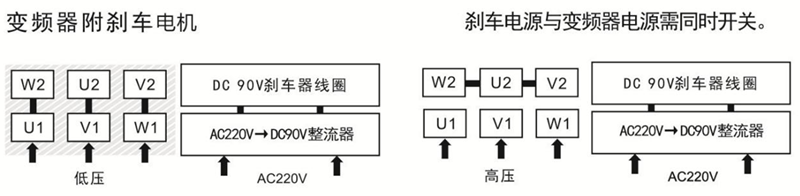

二、FAF159R99減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（有變頻器）

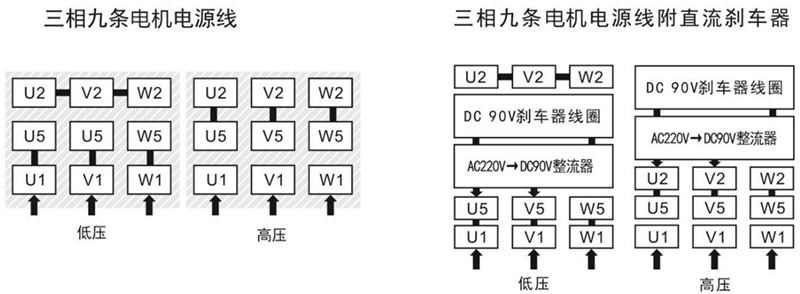

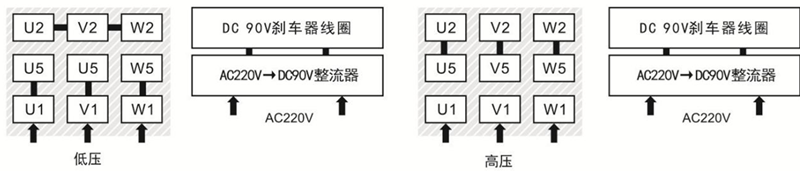

三、FAF159R99減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（無變頻器）

四、FAF159R99減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（有變頻器）

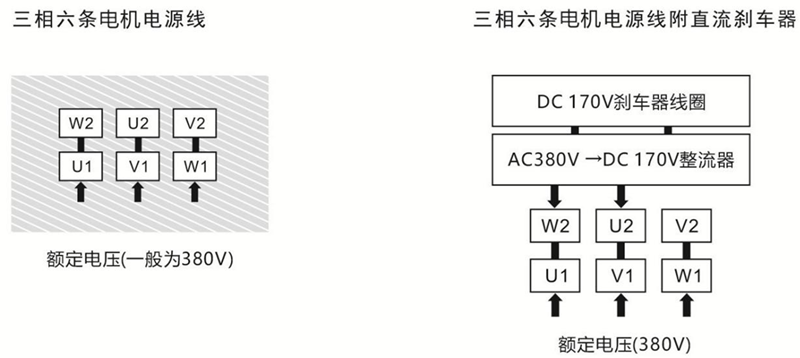

五、FAF159R99減速機電機5.5KW以上三相電機及剎車器接線方式（無變頻器）

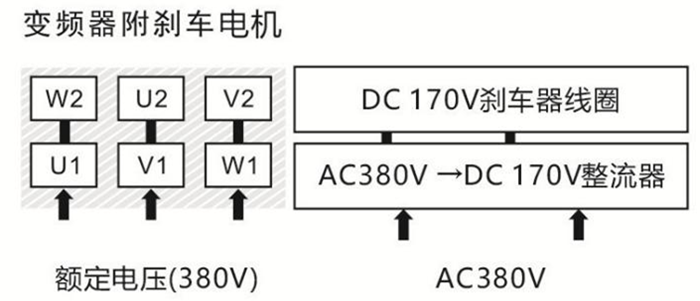

六、FAF159R99減速機電機5.5KW以上三相電機及剎車器接線方式（有變頻）變頻電機減速機

FAF159R99減速電機型號：
