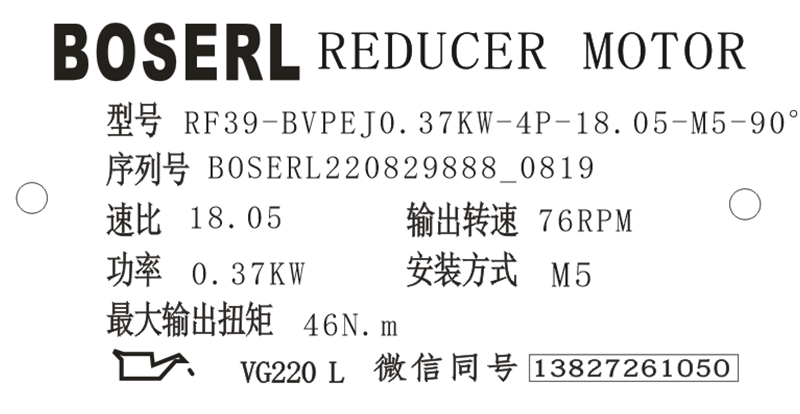

RF39減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RF39減速器選型樣本。

RF39-BVPEJ0.37KW-4P-18.05-M5-90°

RF：系列代號

39：減速機規格代號

B：電機

VPEJ：變頻剎車電機

0.37KW：電機功率

4P：電機級數

18.05：減速機傳動比

M5：減速機安裝位置

90°：接線盒位置

RF39減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動RF39減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

RF39減速器安裝操作的正確方法：

RF39減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。立式減速機

RF39減速器的透氣：安裝位置為M1、M3、M5以及M6中的R39、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列RF39減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的RF39減速器，啟動RF39減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。

RF39減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

RF39減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的RF39減速器選型樣本”）。RF系列減速機

RF39減速器型號：

SRF37-AM100M4，SRF37-AM63M4，SRF37-AM71M4，SRF37-AM80M4，SRF37-AM90M4，SRF37-Y0.12KW，SRF37-Y0.18KW，SRF37-Y0.25KW，SRF37-Y0.37KW，SRF37-Y0.55KW，SRF37-Y0.75KW，SRF37-Y1.1KW，SRF37-Y1.5KW，SRF37-Y100M4，SRF37-Y2.2KW，SRF37-Y3KW，SRF37-Y63M4，SRF37-Y71M4，SRF37-Y80M4，SRF37-Y90M4，SRF37-YB100M4，SRF37-YB63M4，SRF37-YB71M4，SRF37-YB80M4，SRF37-YB90M4，SRF37-YDP100M4，SRF37-YDP63M4，SRF37-YDP71M4，SRF37-YDP80M4，SRF37-YDP90M4，SRF37-YE100M4，SRF37-YE63M4，SRF37-YE71M4，SRF37-YE80M4，SRF37-YE90M4，SRF37-YEJ100M4，SRF37-YEJ63M4，SRF37-YEJ71M4，SRF37-YEJ80M4，SRF37-YEJ90M4，SRF37-YEJB100M4，SRF37-YEJB63M4，SRF37-YEJB71M4，SRF37-YEJB80M4，SRF37-YEJB90M4，SRF37-YP100M4，SRF37-YP63M4，SRF37-YP71M4，SRF37-YP80M4，SRF37-YP90M4，SRF37-YPB100M4，SRF37-YPB63M4，SRF37-YPB71M4，SRF37-YPB80M4，SRF37-YPB90M4，SRF37-YPE100M4，SRF37-YPE63M4，SRF37-YPE71M4，SRF37-YPE80M4，SRF37-YPE90M4，SRF37-YS100M4，SRF37-YS63M4，SRF37-YS71M4，SRF37-YS80M4，SRF37-YS90M4，SRF37-YVB100M4，SRF37-YVB63M4，SRF37-YVB71M4，SRF37-YVB80M4，SRF37-YVB90M4，SRF37-YVP100M4，SRF37-YVP63M4，SRF37-YVP71M4，SRF37-YVP80M4，SRF37-YVP90M4，SRF37-YVPEJ100M4，SRF37-YVPEJ63M4，SRF37-YVPEJ71M4，SRF37-YVPEJ80M4，SRF37-YVPEJ90M4，WRF37-AM100M4，WRF37-AM63M4，WRF37-AM71M4，WRF37-AM80M4，WRF37-AM90M4，WRF37-Y0.12KW，WRF37-Y0.18KW，WRF37-Y0.25KW，WRF37-Y0.37KW，WRF37-Y0.55KW，WRF37-Y0.75KW，WRF37-Y1.1KW，WRF37-Y1.5KW，WRF37-Y100M4，WRF37-Y2.2KW，WRF37-Y3KW，WRF37-Y63M4，WRF37-Y71M4，WRF37-Y80M4，WRF37-Y90M4，WRF37-YB100M4，WRF37-YB63M4，WRF37-YB71M4，WRF37-YB80M4，WRF37-YB90M4，WRF37-YDP100M4，WRF37-YDP63M4，WRF37-YDP71M4，WRF37-YDP80M4，WRF37-YDP90M4，WRF37-YE100M4，WRF37-YE63M4，WRF37-YE71M4，WRF37-YE80M4，WRF37-YE90M4，WRF37-YEJ100M4，WRF37-YEJ63M4，WRF37-YEJ71M4，WRF37-YEJ80M4，WRF37-YEJ90M4，WRF37-YEJB100M4，WRF37-YEJB63M4，WRF37-YEJB71M4，WRF37-YEJB80M4，WRF37-YEJB90M4，WRF37-YP100M4，WRF37-YP63M4，WRF37-YP71M4，WRF37-YP80M4，WRF37-YP90M4，WRF37-YPB100M4，WRF37-YPB63M4，WRF37-YPB71M4，WRF37-YPB80M4，WRF37-YPB90M4，WRF37-YPE100M4，WRF37-YPE63M4，WRF37-YPE71M4，WRF37-YPE80M4，WRF37-YPE90M4，WRF37-YS100M4，WRF37-YS63M4，WRF37-YS71M4，WRF37-YS80M4，WRF37-YS90M4，WRF37-YVB100M4，WRF37-YVB63M4，WRF37-YVB71M4，WRF37-YVB80M4，WRF37-YVB90M4，WRF37-YVP100M4，WRF37-YVP63M4，WRF37-YVP71M4，WRF37-YVP80M4，WRF37-YVP90M4，WRF37-YVPEJ100M4，WRF37-YVPEJ63M4，WRF37-YVPEJ71M4，WRF37-YVPEJ80M4，WRF37-YVPEJ90M4，GRF39-AM100M4，GRF39-AM63M4，GRF39-AM71M4，GRF39-AM80M4，GRF39-AM90M4，GRF39-Y0.12KW，GRF39-Y0.18KW，GRF39-Y0.25KW，GRF39-Y0.37KW，GRF39-Y0.55KW，GRF39-Y0.75KW，GRF39-Y1.1KW，GRF39-Y1.5KW，GRF39-Y100M4，GRF39-Y2.2KW，GRF39-Y3KW，GRF39-Y63M4，GRF39-Y71M4，GRF39-Y80M4，GRF39-Y90M4，GRF39-YB100M4，GRF39-YB63M4，GRF39-YB71M4，GRF39-YB80M4，GRF39-YB90M4，GRF39-YDP100M4，GRF39-YDP63M4，GRF39-YDP71M4，GRF39-YDP80M4，GRF39-YDP90M4，GRF39-YE100M4，GRF39-YE63M4，GRF39-YE71M4，GRF39-YE80M4，GRF39-YE90M4，GRF39-YEJ100M4，GRF39-YEJ63M4，GRF39-YEJ71M4，GRF39-YEJ80M4，GRF39-YEJ90M4，GRF39-YEJB100M4，GRF39-YEJB63M4，GRF39-YEJB71M4，GRF39-YEJB80M4，GRF39-YEJB90M4，GRF39-YP100M4，GRF39-YP63M4，GRF39-YP71M4，GRF39-YP80M4，GRF39-YP90M4，GRF39-YPB100M4，GRF39-YPB63M4，GRF39-YPB71M4，GRF39-YPB80M4，GRF39-YPB90M4，GRF39-YPE100M4，GRF39-YPE63M4，GRF39-YPE71M4，GRF39-YPE80M4，GRF39-YPE90M4，GRF39-YS100M4，GRF39-YS63M4，GRF39-YS71M4，GRF39-YS80M4，GRF39-YS90M4，GRF39-YVB100M4，GRF39-YVB63M4，GRF39-YVB71M4，GRF39-YVB80M4，GRF39-YVB90M4，GRF39-YVP100M4，GRF39-YVP63M4，GRF39-YVP71M4，GRF39-YVP80M4，GRF39-YVP90M4，GRF39-YVPEJ100M4，GRF39-YVPEJ63M4，GRF39-YVPEJ71M4，GRF39-YVPEJ80M4，GRF39-YVPEJ90M4，ARF37-AM100M4，ARF37-AM63M4，ARF37-AM71M4，ARF37-AM80M4，ARF37-AM90M4，ARF37-Y0.12KW，ARF37-Y0.18KW，ARF37-Y0.25KW，ARF37-Y0.37KW，ARF37-Y0.55KW，ARF37-Y0.75KW，ARF37-Y1.1KW，ARF37-Y1.5KW，ARF37-Y100M4，ARF37-Y2.2KW，ARF37-Y3KW，ARF37-Y63M4，ARF37-Y71M4，ARF37-Y80M4，ARF37-Y90M4，ARF37-YB100M4，ARF37-YB63M4，ARF37-YB71M4，ARF37-YB80M4，ARF37-YB90M4，ARF37-YDP100M4，ARF37-YDP63M4，ARF37-YDP71M4，ARF37-YDP80M4，ARF37-YDP90M4，ARF37-YE100M4，ARF37-YE63M4，ARF37-YE71M4，ARF37-YE80M4，ARF37-YE90M4，ARF37-YEJ100M4，ARF37-YEJ63M4，ARF37-YEJ71M4，ARF37-YEJ80M4，ARF37-YEJ90M4，ARF37-YEJB100M4，ARF37-YEJB63M4，ARF37-YEJB71M4，ARF37-YEJB80M4，ARF37-YEJB90M4，ARF37-YP100M4，ARF37-YP63M4，ARF37-YP71M4，ARF37-YP80M4，ARF37-YP90M4，ARF37-YPB100M4，ARF37-YPB63M4，ARF37-YPB71M4，ARF37-YPB80M4，ARF37-YPB90M4，ARF37-YPE100M4，ARF37-YPE63M4，ARF37-YPE71M4，ARF37-YPE80M4，ARF37-YPE90M4，ARF37-YS100M4，ARF37-YS63M4，ARF37-YS71M4，ARF37-YS80M4，ARF37-YS90M4，ARF37-YVB100M4，ARF37-YVB63M4，ARF37-YVB71M4，ARF37-YVB80M4，ARF37-YVB90M4，ARF37-YVP100M4，ARF37-YVP63M4，ARF37-YVP71M4，ARF37-YVP80M4，ARF37-YVP90M4，ARF37-YVPEJ100M4，ARF37-YVPEJ63M4，ARF37-YVPEJ71M4，ARF37-YVPEJ80M4，ARF37-YVPEJ90M4，NRF37-AM100M4，NRF37-AM63M4，NRF37-AM71M4，NRF37-AM80M4，NRF37-AM90M4，NRF37-Y0.12KW，NRF37-Y0.18KW，NRF37-Y0.25KW，NRF37-Y0.37KW，NRF37-Y0.55KW，NRF37-Y0.75KW，NRF37-Y1.1KW，NRF37-Y1.5KW，NRF37-Y100M4，NRF37-Y2.2KW，NRF37-Y3KW，NRF37-Y63M4，NRF37-Y71M4，NRF37-Y80M4，NRF37-Y90M4，NRF37-YB100M4，NRF37-YB63M4，NRF37-YB71M4，NRF37-YB80M4，NRF37-YB90M4，NRF37-YDP100M4，NRF37-YDP63M4，NRF37-YDP71M4，NRF37-YDP80M4，NRF37-YDP90M4，NRF37-YE100M4，NRF37-YE63M4，NRF37-YE71M4，NRF37-YE80M4，NRF37-YE90M4，NRF37-YEJ100M4，NRF37-YEJ63M4，NRF37-YEJ71M4，NRF37-YEJ80M4，NRF37-YEJ90M4，NRF37-YEJB100M4，NRF37-YEJB63M4，NRF37-YEJB71M4，NRF37-YEJB80M4，NRF37-YEJB90M4，NRF37-YP100M4，NRF37-YP63M4，NRF37-YP71M4，NRF37-YP80M4，NRF37-YP90M4，NRF37-YPB100M4，NRF37-YPB63M4，NRF37-YPB71M4，NRF37-YPB80M4，NRF37-YPB90M4，NRF37-YPE100M4，NRF37-YPE63M4，NRF37-YPE71M4，NRF37-YPE80M4，NRF37-YPE90M4，NRF37-YS100M4，NRF37-YS63M4，NRF37-YS71M4，NRF37-YS80M4，NRF37-YS90M4，NRF37-YVB100M4，NRF37-YVB63M4，NRF37-YVB71M4，NRF37-YVB80M4，NRF37-YVB90M4，NRF37-YVP100M4，NRF37-YVP63M4，NRF37-YVP71M4，NRF37-YVP80M4，NRF37-YVP90M4，NRF37-YVPEJ100M4，NRF37-YVPEJ63M4，NRF37-YVPEJ71M4，NRF37-YVPEJ80M4，NRF37-YVPEJ90M4，RF37SF80，RF37SF90，RF37SF100，RF37SF112，RF37SF115，RF37SF140，RF37SF160，RF37SF190。

RF39減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.csfzfl.com/product/list-rfxiliejiansuji-cn.html

推薦類似型號：R39減速機
