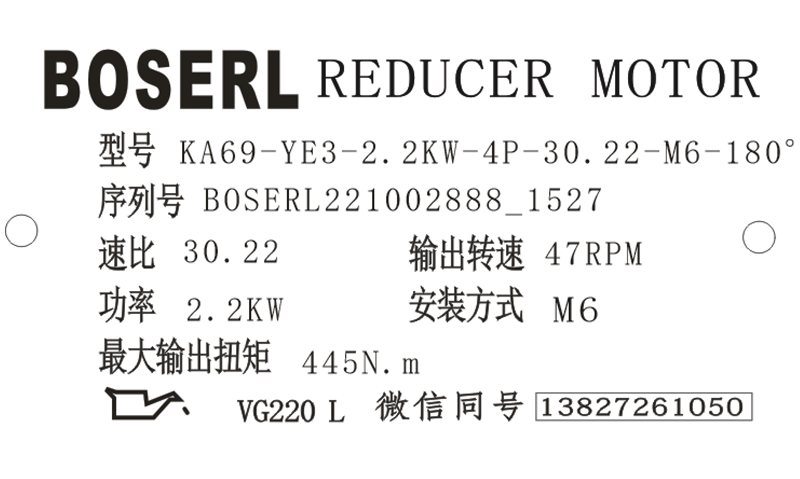

KA69減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA69減速機選型樣本。

KA69-YE3-2.2KW-4P-30.22-M6-180°

KA：系列代號

69：減速機規格代號

YE3：電機

2.2KW：電機功率

4P：電機級數

30.22：減速機傳動比

M6：減速機安裝位置

180°：接線盒位置

KA69減速機空心軸扭矩臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA69減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機

KA69減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA69減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機

KA69減速機型號：

WKA67-Y0.18SKA，WKA67-Y0.25SKA，WKA67-Y0.37SKA，WKA67-Y0.55SKA，WKA67-Y0.75SKA，WKA67-Y1.1SKA，WKA67-Y1.5SKA，WKA67-Y100M4，WKA67-Y112M4，WKA67-Y2.2SKA，WKA67-Y3SKA，WKA67-Y4SKA，WKA67-Y5.5SKA，WKA67-Y63M4，WKA67-Y71M4，WKA67-Y80M4，WKA67-Y90M4，WKA67-YB100M4，WKA67-YB112M4，WKA67-YB132M4，WKA67-YB63M4，WKA67-YB71M4，WKA67-YB80M4，WKA67-YB90M4，WKA67-YDP100M4，WKA67-YDP112M4，WKA67-YDP132M4，WKA67-YDP63M4，WKA67-YDP71M4，WKA67-YDP80M4，WKA67-YDP90M4，WKA67-YE100M4，WKA67-YE112M4，WKA67-YE132M4，WKA67-YE63M4，WKA67-YE71M4，WKA67-YE80M4，WKA67-YE90M4，WKA67-YEJ100M4，WKA67-YEJ112M4，WKA67-YEJ132M4，WKA67-YEJ63M4，WKA67-YEJ71M4，WKA67-YEJ80M4，WKA67-YEJ90M4，WKA67-YEJB100M4，WKA67-YEJB112M4，WKA67-YEJB132M4，WKA67-YEJB63M4，WKA67-YEJB71M4，WKA67-YEJB80M4，WKA67-YEJB90M4，WKA67-YP100M4，WKA67-YP112M4，WKA67-YP132M4，WKA67-YP63M4，WKA67-YP71M4，WKA67-YP80M4，WKA67-YP90M4，WKA67-YPB100M4，WKA67-YPB112M4，WKA67-YPB132M4，WKA67-YPB63M4，WKA67-YPB71M4，WKA67-YPB80M4，WKA67-YPB90M4，WKA67-YPE100M4，WKA67-YPE112M4，WKA67-YPE132M4，WKA67-YPE63M4，WKA67-YPE71M4，WKA67-YPE80M4，WKA67-YPE90M4，WKA67-YS100M4，WKA67-YS112M4，WKA67-YS132M4，WKA67-YS63M4，WKA67-YS71M4，WKA67-YS80M4，WKA67-YS90M4，WKA67-YVB100M4，WKA67-YVB112M4，WKA67-YVB132M4，WKA67-YVB63M4，WKA67-YVB71M4，WKA67-YVB80M4，WKA67-YVB90M4，WKA67-YVP100M4，WKA67-YVP112M4，WKA67-YVP132M4，WKA67-YVP63M4，WKA67-YVP71M4，WKA67-YVP80M4，WKA67-YVP90M4，WKA67-YVPEJ100M4，WKA67-YVPEJ112M4，WKA67-YVPEJ132M4，WKA67-YVPEJ63M4，WKA67-YVPEJ71M4，WKA67-YVPEJ80M4，WKA67-YVPEJ90M4，NKA67-Y0.18SKA，NKA67-Y0.25SKA，NKA67-Y0.37SKA，NKA67-Y0.55SKA，NKA67-Y0.75SKA，NKA67-Y1.1SKA，NKA67-Y1.5SKA，NKA67-Y100M4，NKA67-Y112M4，NKA67-Y2.2SKA，NKA67-Y3SKA，NKA67-Y4SKA，NKA67-Y5.5SKA，NKA67-Y63M4，NKA67-Y71M4，NKA67-Y80M4，NKA67-Y90M4，NKA67-YB100M4，NKA67-YB112M4，NKA67-YB132M4，NKA67-YB63M4，NKA67-YB71M4，NKA67-YB80M4，NKA67-YB90M4，NKA67-YDP100M4，NKA67-YDP112M4，NKA67-YDP132M4，NKA67-YDP63M4，NKA67-YDP71M4，NKA67-YDP80M4，NKA67-YDP90M4，NKA67-YE100M4，NKA67-YE112M4，NKA67-YE132M4，NKA67-YE63M4，NKA67-YE71M4，NKA67-YE80M4，NKA67-YE90M4，NKA67-YEJ100M4，NKA67-YEJ112M4，NKA67-YEJ132M4，NKA67-YEJ63M4，NKA67-YEJ71M4，NKA67-YEJ80M4，NKA67-YEJ90M4，NKA67-YEJB100M4，NKA67-YEJB112M4，NKA67-YEJB132M4，NKA67-YEJB63M4，NKA67-YEJB71M4，NKA67-YEJB80M4，NKA67-YEJB90M4，NKA67-YP100M4，NKA67-YP112M4，NKA67-YP132M4，NKA67-YP63M4，NKA67-YP71M4，NKA67-YP80M4，NKA67-YP90M4，NKA67-YPB100M4，NKA67-YPB112M4，NKA67-YPB132M4，NKA67-YPB63M4，NKA67-YPB71M4，NKA67-YPB80M4，NKA67-YPB90M4，NKA67-YPE100M4，NKA67-YPE112M4，NKA67-YPE132M4，NKA67-YPE63M4，NKA67-YPE71M4，NKA67-YPE80M4，NKA67-YPE90M4，NKA67-YS100M4，NKA67-YS112M4，NKA67-YS132M4，NKA67-YS63M4，NKA67-YS71M4，NKA67-YS80M4，NKA67-YS90M4，NKA67-YVB100M4，NKA67-YVB112M4，NKA67-YVB132M4，NKA67-YVB63M4，NKA67-YVB71M4，NKA67-YVB80M4，NKA67-YVB90M4，NKA67-YVP100M4，NKA67-YVP112M4，NKA67-YVP132M4，NKA67-YVP63M4，NKA67-YVP71M4，NKA67-YVP80M4，NKA67-YVP90M4，NKA67-YVPEJ100M4，NKA67-YVPEJ112M4，NKA67-YVPEJ132M4，NKA67-YVPEJ63M4，NKA67-YVPEJ71M4，NKA67-YVPEJ80M4，NKA67-YVPEJ90M4，AKA67-Y0.18SKA，AKA67-Y0.25SKA，AKA67-Y0.37SKA，AKA67-Y0.55SKA，AKA67-Y0.75SKA，AKA67-Y1.1SKA，AKA67-Y1.5SKA，AKA67-Y100M4，AKA67-Y112M4，AKA67-Y2.2SKA，AKA67-Y3SKA，AKA67-Y4SKA，AKA67-Y5.5SKA，AKA67-Y63M4，AKA67-Y71M4，AKA67-Y80M4，AKA67-Y90M4，AKA67-YB100M4，AKA67-YB112M4，AKA67-YB132M4，AKA67-YB63M4，AKA67-YB71M4，AKA67-YB80M4，AKA67-YB90M4，AKA67-YDP100M4，AKA67-YDP112M4，AKA67-YDP132M4，AKA67-YDP63M4，AKA67-YDP71M4，AKA67-YDP80M4，AKA67-YDP90M4，AKA67-YE100M4，AKA67-YE112M4，AKA67-YE132M4，AKA67-YE63M4，AKA67-YE71M4，AKA67-YE80M4，AKA67-YE90M4，AKA67-YEJ100M4，AKA67-YEJ112M4，AKA67-YEJ132M4，AKA67-YEJ63M4，AKA67-YEJ71M4，AKA67-YEJ80M4，AKA67-YEJ90M4，AKA67-YEJB100M4，AKA67-YEJB112M4，AKA67-YEJB132M4，AKA67-YEJB63M4，AKA67-YEJB71M4，AKA67-YEJB80M4，AKA67-YEJB90M4，AKA67-YP100M4，AKA67-YP112M4，AKA67-YP132M4，AKA67-YP63M4，AKA67-YP71M4，AKA67-YP80M4，AKA67-YP90M4，AKA67-YPB100M4，AKA67-YPB112M4，AKA67-YPB132M4，AKA67-YPB63M4，AKA67-YPB71M4，AKA67-YPB80M4，AKA67-YPB90M4，AKA67-YPE100M4，AKA67-YPE112M4，AKA67-YPE132M4，AKA67-YPE63M4，AKA67-YPE71M4，AKA67-YPE80M4，AKA67-YPE90M4，AKA67-YS100M4，AKA67-YS112M4，AKA67-YS132M4，AKA67-YS63M4，AKA67-YS71M4，AKA67-YS80M4，AKA67-YS90M4，AKA67-YVB100M4，AKA67-YVB112M4，AKA67-YVB132M4，AKA67-YVB63M4，AKA67-YVB71M4，AKA67-YVB80M4，AKA67-YVB90M4，AKA67-YVP100M4，AKA67-YVP112M4，AKA67-YVP132M4，AKA67-YVP63M4，AKA67-YVP71M4，AKA67-YVP80M4，AKA67-YVP90M4，AKA67-YVPEJ100M4，AKA67-YVPEJ112M4，AKA67-YVPEJ132M4，AKA67-YVPEJ63M4，AKA67-YVPEJ71M4，AKA67-YVPEJ80M4，AKA67-YVPEJ90M4，SKA67-Y0.18SKA，SKA67-Y0.25SKA，SKA67-Y0.37SKA，SKA67-Y0.55SKA，SKA67-Y0.75SKA，SKA67-Y1.1SKA，SKA67-Y1.5SKA，SKA67-Y100M4，SKA67-Y112M4，SKA67-Y2.2SKA，SKA67-Y3SKA，SKA67-Y4SKA，SKA67-Y5.5SKA，SKA67-Y63M4，SKA67-Y71M4，SKA67-Y80M4，SKA67-Y90M4，SKA67-YB100M4，SKA67-YB112M4，SKA67-YB132M4，SKA67-YB63M4，SKA67-YB71M4，SKA67-YB80M4，SKA67-YB90M4，SKA67-YDP100M4，SKA67-YDP112M4，SKA67-YDP132M4，SKA67-YDP63M4，SKA67-YDP71M4，SKA67-YDP80M4，SKA67-YDP90M4，SKA67-YE100M4，SKA67-YE112M4，SKA67-YE132M4，SKA67-YE63M4，SKA67-YE71M4，SKA67-YE80M4，SKA67-YE90M4，SKA67-YEJ100M4，SKA67-YEJ112M4，SKA67-YEJ132M4，SKA67-YEJ63M4，SKA67-YEJ71M4，SKA67-YEJ80M4，SKA67-YEJ90M4，SKA67-YEJB100M4，SKA67-YEJB112M4，SKA67-YEJB132M4，SKA67-YEJB63M4，SKA67-YEJB71M4，SKA67-YEJB80M4，SKA67-YEJB90M4，SKA67-YP100M4，SKA67-YP112M4，SKA67-YP132M4，SKA67-YP63M4，SKA67-YP71M4，SKA67-YP80M4，SKA67-YP90M4，SKA67-YPB100M4，SKA67-YPB112M4，SKA67-YPB132M4，SKA67-YPB63M4，SKA67-YPB71M4，SKA67-YPB80M4，SKA67-YPB90M4，SKA67-YPE100M4，SKA67-YPE112M4，SKA67-YPE132M4，SKA67-YPE63M4，SKA67-YPE71M4，SKA67-YPE80M4，SKA67-YPE90M4，SKA67-YS100M4，SKA67-YS112M4，SKA67-YS132M4，SKA67-YS63M4，SKA67-YS71M4，SKA67-YS80M4，SKA67-YS90M4，SKA67-YVB100M4，SKA67-YVB112M4，SKA67-YVB132M4，SKA67-YVB63M4，SKA67-YVB71M4，SKA67-YVB80M4，SKA67-YVB90M4，SKA67-YVP100M4，SKA67-YVP112M4，SKA67-YVP132M4，SKA67-YVP63M4，SKA67-YVP71M4，SKA67-YVP80M4，SKA67-YVP90M4，SKA67-YVPEJ100M4，SKA67-YVPEJ112M4，SKA67-YVPEJ132M4，SKA67-YVPEJ63M4，SKA67-YVPEJ71M4，SKA67-YVPEJ80M4，SKA67-YVPEJ90M4，GKA69-Y0.18SKA，GKA69-Y0.25SKA，GKA69-Y0.37SKA，GKA69-Y0.55SKA，GKA69-Y0.75SKA，GKA69-Y1.1SKA，GKA69-Y1.5SKA，GKA69-Y100M4，GKA69-Y112M4，GKA69-Y2.2SKA，GKA69-Y3SKA，GKA69-Y4SKA，GKA69-Y5.5SKA，GKA69-Y63M4，GKA69-Y71M4，GKA69-Y80M4，GKA69-Y90M4，GKA69-YB100M4，GKA69-YB112M4，GKA69-YB132M4，GKA69-YB63M4，GKA69-YB71M4，GKA69-YB80M4，GKA69-YB90M4，GKA69-YDP100M4，GKA69-YDP112M4，GKA69-YDP132M4，GKA69-YDP63M4，GKA69-YDP71M4，GKA69-YDP80M4，GKA69-YDP90M4，GKA69-YE100M4，GKA69-YE112M4，GKA69-YE132M4，GKA69-YE63M4，GKA69-YE71M4，GKA69-YE80M4，GKA69-YE90M4，GKA69-YEJ100M4，GKA69-YEJ112M4，GKA69-YEJ132M4，GKA69-YEJ63M4，GKA69-YEJ71M4，GKA69-YEJ80M4，GKA69-YEJ90M4，GKA69-YEJB100M4，GKA69-YEJB112M4，GKA69-YEJB132M4，GKA69-YEJB63M4，GKA69-YEJB71M4，GKA69-YEJB80M4，GKA69-YEJB90M4，GKA69-YP100M4，GKA69-YP112M4，GKA69-YP132M4，GKA69-YP63M4，GKA69-YP71M4，GKA69-YP80M4，GKA69-YP90M4，GKA69-YPB100M4，GKA69-YPB112M4，GKA69-YPB132M4，GKA69-YPB63M4，GKA69-YPB71M4，GKA69-YPB80M4，GKA69-YPB90M4，GKA69-YPE100M4，GKA69-YPE112M4，GKA69-YPE132M4，GKA69-YPE63M4，GKA69-YPE71M4，GKA69-YPE80M4，GKA69-YPE90M4，GKA69-YS100M4，GKA69-YS112M4，GKA69-YS132M4，GKA69-YS63M4，GKA69-YS71M4，GKA69-YS80M4，GKA69-YS90M4，GKA69-YVB100M4，GKA69-YVB112M4，GKA69-YVB132M4，GKA69-YVB63M4，GKA69-YVB71M4，GKA69-YVB80M4，GKA69-YVB90M4，GKA69-YVP100M4，GKA69-YVP112M4，GKA69-YVP132M4，GKA69-YVP63M4，GKA69-YVP71M4，GKA69-YVP80M4，GKA69-YVP90M4，GKA69-YVPEJ100M4，GKA69-YVPEJ112M4，GKA69-YVPEJ132M4，GKA69-YVPEJ63M4，GKA69-YVPEJ71M4，GKA69-YVPEJ80M4，GKA69-YVPEJ90M4。

KA69減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.csfzfl.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K69減速機
