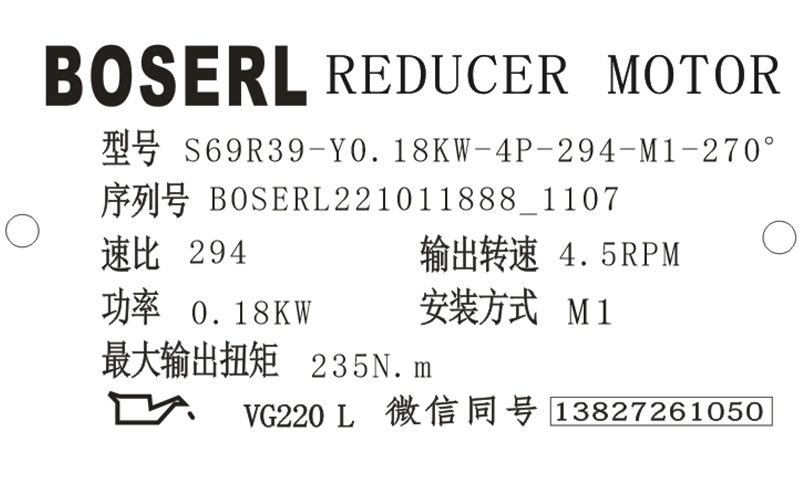

S69R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的S69R39減速機選型樣本。

S69R39-Y0.18KW-4P-294-M1-270°

S/R：系列代號

69/39：減速機規格代號

Y：電機

0.18KW：電機功率

4P：電機級數

294：減速機傳動比

M1：減速機安裝位置

270°：接線盒位置

S69R39減速機電機接線注意事項：

電機本體并不附帶保護裝置。按照電氣設備技術標準的規定，必須安裝過載保護裝置。同時，推薦安裝漏電斷路器等其它保護裝置。否則有可能會導致?lián)p傷、觸電、火災、燒傷。齒輪減速電機

請將接線時的電壓壓降控制在2%以內，接線距離過長，可導致電壓壓降過大，電機可能無法啟動。

進行反轉時，請務必先暫停，然后開始反轉。逆向制動引起的正反運轉可能會損壞裝置。

附帶制動器時，制動線圈應與電機繞組同步通斷。

測定絕緣電阻時，請勿觸摸端子。否則有可能會導致觸電。

若繞組通制動不通，電機會卡死燒機；若制動通繞組不通，有可能會導致線圈燒毀、火災。自鎖減速機

S69R39減速機電機噪音故障維修：

風葉擦風罩將，風葉/風罩扳正，或更換變型零部件；

軸承壞，更換軸承；

底板松動，擰緊固定螺栓；

電機缺相運行:電源接觸不良，修復觸點及電源線路；

電機缺相運行:線圈斷路，更換定子線圈；

氣隙不均，檢查并校正軸承座配合/更換端蓋或法蘭；

定轉子擦，更換電機；

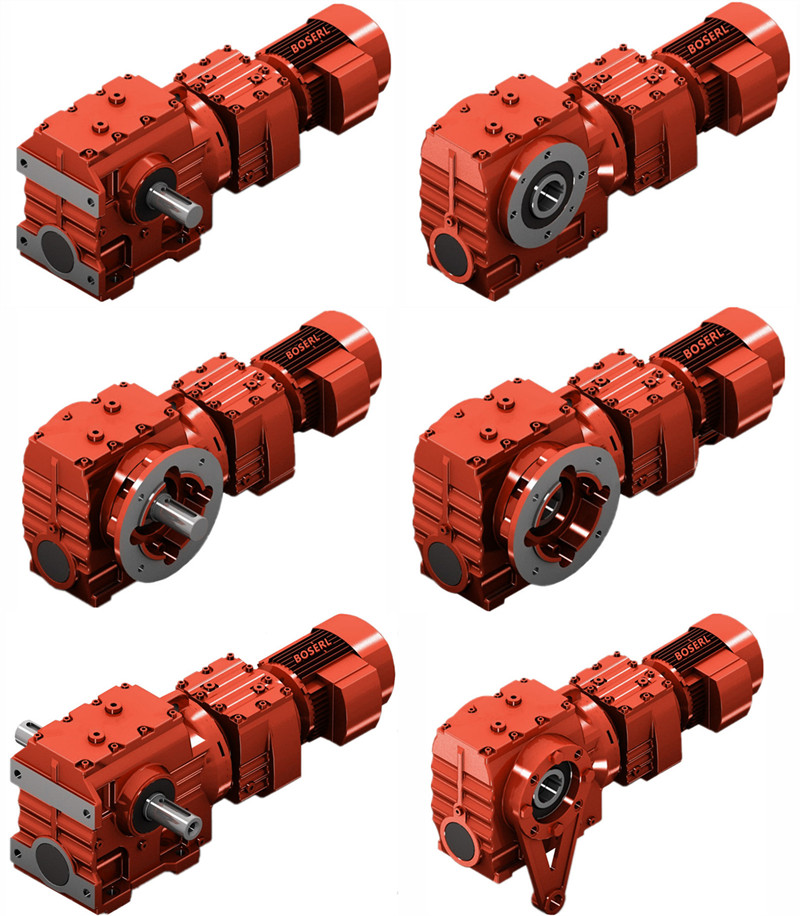

轉子不平衡量大，重新校平衡；S系列減速機

轉子斷條，更換轉子；線圈內有一個線苞嵌反，更換定子線圈。

S69R39減速電機型號：

YQS67R37-Y63M4，YQS67R37-Y71M4，YQS67R37-Y80M4，YQS67RF37-Y0.12KW，YQS67RF37-Y0.18KW，YQS67RF37-Y0.25KW，YQS67RF37-Y0.37KW，YQS67RF37-Y0.55KW，YQS67RF37-Y63M4，YQS67RF37-Y71M4，YQS67RF37-Y80M4，YQS67RF37-YB63M4，YQS67RF37-YB71M4，YQS67RF37-YB80M4，YQS67RF37-YDP63M4，YQS67RF37-YDP71M4，YQS67RF37-YDP80M4，YQS67RF37-YE63M4，YQS67RF37-YE71M4，YQS67RF37-YE80M4，YQS67RF37-YEJ63M4，YQS67RF37-YEJ71M4，YQS67RF37-YEJ80M4，YQS67RF37-YEJB63M4，YQS67RF37-YEJB71M4，YQS67RF37-YEJB80M4，YQS67RF37-YP63M4，YQS67RF37-YP71M4，YQS67RF37-YP80M4，YQS67RF37-YPB63M4，YQS67RF37-YPB71M4，YQS67RF37-YPB80M4，YQS67RF37-YPE63M4，YQS67RF37-YPE71M4，YQS67RF37-YPE80M4，YQS67RF37-YS63M4，YQS67RF37-YS71M4，YQS67RF37-YS80M4，YQS67RF37-YVB63M4，YQS67RF37-YVB71M4，YQS67RF37-YVB80M4，YQS67RF37-YVP63M4，YQS67RF37-YVP71M4，YQS67RF37-YVP80M4，AS67R37-Y63M4，AS67R37-Y71M4，AS67R37-Y80M4，AS67RF37-Y0.12KW，AS67RF37-Y0.18KW，AS67RF37-Y0.25KW，AS67RF37-Y0.37KW，AS67RF37-Y0.55KW，AS67RF37-Y63M4，AS67RF37-Y71M4，AS67RF37-Y80M4，AS67RF37-YB63M4，AS67RF37-YB71M4，AS67RF37-YB80M4，AS67RF37-YDP63M4，AS67RF37-YDP71M4，AS67RF37-YDP80M4，AS67RF37-YE63M4，AS67RF37-YE71M4，AS67RF37-YE80M4，AS67RF37-YEJ63M4，AS67RF37-YEJ71M4，AS67RF37-YEJ80M4，AS67RF37-YEJB63M4，AS67RF37-YEJB71M4，AS67RF37-YEJB80M4，AS67RF37-YP63M4，AS67RF37-YP71M4，AS67RF37-YP80M4，AS67RF37-YPB63M4，AS67RF37-YPB71M4，AS67RF37-YPB80M4，AS67RF37-YPE63M4，AS67RF37-YPE71M4，AS67RF37-YPE80M4，AS67RF37-YS63M4，AS67RF37-YS71M4，AS67RF37-YS80M4，AS67RF37-YVB63M4，AS67RF37-YVB71M4，AS67RF37-YVB80M4，AS67RF37-YVP63M4，AS67RF37-YVP71M4，AS67RF37-YVP80M4，SS67R37-Y63M4，SS67R37-Y71M4，SS67R37-Y80M4，SS67RF37-Y0.12KW，SS67RF37-Y0.18KW，SS67RF37-Y0.25KW，SS67RF37-Y0.37KW，SS67RF37-Y0.55KW，SS67RF37-Y63M4，SS67RF37-Y71M4，SS67RF37-Y80M4，SS67RF37-YB63M4，SS67RF37-YB71M4，SS67RF37-YB80M4，SS67RF37-YDP63M4，SS67RF37-YDP71M4，SS67RF37-YDP80M4，SS67RF37-YE63M4，SS67RF37-YE71M4，SS67RF37-YE80M4，SS67RF37-YEJ63M4，SS67RF37-YEJ71M4，SS67RF37-YEJ80M4，SS67RF37-YEJB63M4，SS67RF37-YEJB71M4，SS67RF37-YEJB80M4，SS67RF37-YP63M4，SS67RF37-YP71M4，SS67RF37-YP80M4，SS67RF37-YPB63M4，SS67RF37-YPB71M4，SS67RF37-YPB80M4，SS67RF37-YPE63M4，SS67RF37-YPE71M4，SS67RF37-YPE80M4，SS67RF37-YS63M4，SS67RF37-YS71M4，SS67RF37-YS80M4，SS67RF37-YVB63M4，SS67RF37-YVB71M4，SS67RF37-YVB80M4，SS67RF37-YVP63M4，SS67RF37-YVP71M4，SS67RF37-YVP80M4，XDS67R37-Y63M4，XDS67R37-Y71M4，XDS67R37-Y80M4，XDS67RF37-Y0.12KW，XDS67RF37-Y0.18KW，XDS67RF37-Y0.25KW，XDS67RF37-Y0.37KW，XDS67RF37-Y0.55KW，XDS67RF37-Y63M4，XDS67RF37-Y71M4，XDS67RF37-Y80M4，XDS67RF37-YB63M4，XDS67RF37-YB71M4，XDS67RF37-YB80M4，XDS67RF37-YDP63M4，XDS67RF37-YDP71M4，XDS67RF37-YDP80M4，XDS67RF37-YE63M4，XDS67RF37-YE71M4，XDS67RF37-YE80M4，XDS67RF37-YEJ63M4，XDS67RF37-YEJ71M4，XDS67RF37-YEJ80M4，XDS67RF37-YEJB63M4，XDS67RF37-YEJB71M4，XDS67RF37-YEJB80M4，XDS67RF37-YP63M4，XDS67RF37-YP71M4，XDS67RF37-YP80M4，XDS67RF37-YPB63M4，XDS67RF37-YPB71M4，XDS67RF37-YPB80M4，XDS67RF37-YPE63M4，XDS67RF37-YPE71M4，XDS67RF37-YPE80M4，XDS67RF37-YS63M4，XDS67RF37-YS71M4，XDS67RF37-YS80M4，XDS67RF37-YVB63M4，XDS67RF37-YVB71M4，XDS67RF37-YVB80M4，XDS67RF37-YVP63M4，XDS67RF37-YVP71M4，XDS67RF37-YVP80M4，WS67R37-Y63M4，WS67R37-Y71M4，WS67R37-Y80M4，WS67RF37-Y0.12KW，WS67RF37-Y0.18KW，WS67RF37-Y0.25KW，WS67RF37-Y0.37KW，WS67RF37-Y0.55KW，WS67RF37-Y63M4，WS67RF37-Y71M4，WS67RF37-Y80M4，WS67RF37-YB63M4，WS67RF37-YB71M4，WS67RF37-YB80M4，WS67RF37-YDP63M4，WS67RF37-YDP71M4，WS67RF37-YDP80M4，WS67RF37-YE63M4，WS67RF37-YE71M4，WS67RF37-YE80M4，WS67RF37-YEJ63M4，WS67RF37-YEJ71M4，WS67RF37-YEJ80M4，WS67RF37-YEJB63M4，WS67RF37-YEJB71M4，WS67RF37-YEJB80M4，WS67RF37-YP63M4，WS67RF37-YP71M4，WS67RF37-YP80M4，WS67RF37-YPB63M4，WS67RF37-YPB71M4，WS67RF37-YPB80M4，WS67RF37-YPE63M4，WS67RF37-YPE71M4，WS67RF37-YPE80M4，WS67RF37-YS63M4，WS67RF37-YS71M4，WS67RF37-YS80M4，WS67RF37-YVB63M4，WS67RF37-YVB71M4，WS67RF37-YVB80M4，WS67RF37-YVP63M4，WS67RF37-YVP71M4，WS67RF37-YVP80M4，JCS67R37-Y63M4，JCS67R37-Y71M4，JCS67R37-Y80M4，JCS67RF37-Y0.12KW，JCS67RF37-Y0.18KW，JCS67RF37-Y0.25KW，JCS67RF37-Y0.37KW，JCS67RF37-Y0.55KW，JCS67RF37-Y63M4，JCS67RF37-Y71M4，JCS67RF37-Y80M4，JCS67RF37-YB63M4，JCS67RF37-YB71M4，JCS67RF37-YB80M4，JCS67RF37-YDP63M4，JCS67RF37-YDP71M4，JCS67RF37-YDP80M4，JCS67RF37-YE63M4，JCS67RF37-YE71M4，JCS67RF37-YE80M4，JCS67RF37-YEJ63M4，JCS67RF37-YEJ71M4，JCS67RF37-YEJ80M4，JCS67RF37-YEJB63M4，JCS67RF37-YEJB71M4，JCS67RF37-YEJB80M4，JCS67RF37-YP63M4，JCS67RF37-YP71M4，JCS67RF37-YP80M4，JCS67RF37-YPB63M4，JCS67RF37-YPB71M4，JCS67RF37-YPB80M4，JCS67RF37-YPE63M4，JCS67RF37-YPE71M4，JCS67RF37-YPE80M4，JCS67RF37-YS63M4，JCS67RF37-YS71M4，JCS67RF37-YS80M4，JCS67RF37-YVB63M4，JCS67RF37-YVB71M4，JCS67RF37-YVB80M4，JCS67RF37-YVP63M4，JCS67RF37-YVP71M4，JCS67RF37-YVP80M4，NS67R37-Y63M4，NS67R37-Y71M4，NS67R37-Y80M4，NS67RF37-Y0.12KW，NS67RF37-Y0.18KW，NS67RF37-Y0.25KW，NS67RF37-Y0.37KW，NS67RF37-Y0.55KW，NS67RF37-Y63M4，NS67RF37-Y71M4，NS67RF37-Y80M4，NS67RF37-YB63M4，NS67RF37-YB71M4，NS67RF37-YB80M4，NS67RF37-YDP63M4，NS67RF37-YDP71M4，NS67RF37-YDP80M4，NS67RF37-YE63M4，NS67RF37-YE71M4，NS67RF37-YE80M4，NS67RF37-YEJ63M4，NS67RF37-YEJ71M4，NS67RF37-YEJ80M4，NS67RF37-YEJB63M4，NS67RF37-YEJB71M4，NS67RF37-YEJB80M4，NS67RF37-YP63M4，NS67RF37-YP71M4，NS67RF37-YP80M4，NS67RF37-YPB63M4，NS67RF37-YPB71M4，NS67RF37-YPB80M4，NS67RF37-YPE63M4，NS67RF37-YPE71M4，NS67RF37-YPE80M4，NS67RF37-YS63M4，NS67RF37-YS71M4，NS67RF37-YS80M4，NS67RF37-YVB63M4，NS67RF37-YVB71M4，NS67RF37-YVB80M4，NS67RF37-YVP63M4，NS67RF37-YVP71M4，NS67RF37-YVP80M4，SW67RW37-Y63M4，SW67RW37-Y71M4，SW67RW37-Y80M4，SW67RWF37-Y0.12KW，SW67RWF37-Y0.18KW，SW67RWF37-Y0.25KW，SW67RWF37-Y0.37KW，SW67RWF37-Y0.55KW，SW67RWF37-Y63M4，SW67RWF37-Y71M4，SW67RWF37-Y80M4，SW67RWF37-YB63M4，SW67RWF37-YB71M4，SW67RWF37-YB80M4，SW67RWF37-YDP63M4，SW67RWF37-YDP71M4，SW67RWF37-YDP80M4，SW67RWF37-YE63M4，SW67RWF37-YE71M4，SW67RWF37-YE80M4，SW67RWF37-YEJ63M4，SW67RWF37-YEJ71M4，SW67RWF37-YEJ80M4，SW67RWF37-YEJB63M4，SW67RWF37-YEJB71M4，SW67RWF37-YEJB80M4，SW67RWF37-YP63M4，SW67RWF37-YP71M4，SW67RWF37-YP80M4，SW67RWF37-YPB63M4，SW67RWF37-YPB71M4，SW67RWF37-YPB80M4，SW67RWF37-YPE63M4，SW67RWF37-YPE71M4，SW67RWF37-YPE80M4，SW67RWF37-YS63M4，SW67RWF37-YS71M4，SW67RWF37-YS80M4，SW67RWF37-YVB63M4，SW67RWF37-YVB71M4，SW67RWF37-YVB80M4，SW67RWF37-YVP63M4，SW67RWF37-YVP71M4，SW67RWF37-YVP80M4，S69R39-Y63M4，S69R39-Y71M4，S69R39-Y80M4，S69RF39-Y0.12KW，S69RF39-Y0.18KW，S69RF39-Y0.25KW，S69RF39-Y0.39KW，S69RF39-Y0.55KW，S69RF39-Y63M4，S69RF39-Y71M4，S69RF39-Y80M4，S69RF39-YB63M4，S69RF39-YB71M4，S69RF39-YB80M4，S69RF39-YDP63M4，S69RF39-YDP71M4，S69RF39-YDP80M4，S69RF39-YE63M4，S69RF39-YE71M4，S69RF39-YE80M4，S69RF39-YEJ63M4，S69RF39-YEJ71M4，S69RF39-YEJ80M4，S69RF39-YEJB63M4，S69RF39-YEJB71M4，S69RF39-YEJB80M4，S69RF39-YP63M4，S69RF39-YP71M4，S69RF39-YP80M4，S69RF39-YPB63M4，S69RF39-YPB71M4，S69RF39-YPB80M4，S69RF39-YPE63M4，S69RF39-YPE71M4，S69RF39-YPE80M4，S69RF39-YS63M4，S69RF39-YS71M4，S69RF39-YS80M4，S69RF39-YVB63M4，S69RF39-YVB71M4，S69RF39-YVB80M4，S69RF39-YVP63M4，S69RF39-YVP71M4，S69RF39-YVP80M4。
